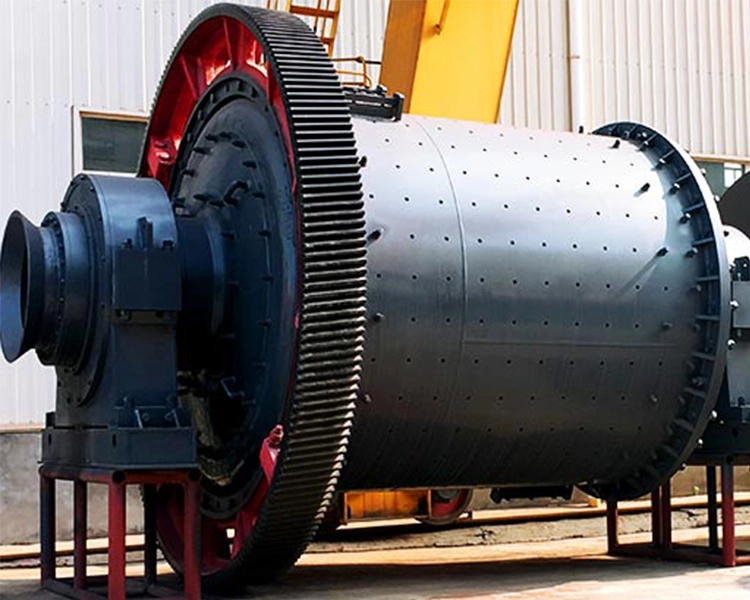

Ball Mill for sale

Ball Mill

Ball mill is the key equipment for materials grinding after materials are crushed.

  • Feeding Granularity

    ≤25mm

  • Production Capacity

    0.65-615t/h

  • Warranty time

    12 month

  • Handling Materials

    Quartz stone, gold ore, iron ore, cement clinker, copper ore, pyrrhotite, glass.

  • Yes! I am Interested!

    Free Quote

Product Introduce

Ball mill is the key equipment for materials grinding after materials are crushed. Ball Mill is widely used in cement, silicate products, new building materials, refractories, fertilizers, black and non-ferrous metal mineral processing and glass ceramics and other production industries, it can carry on dry or wet grinding for all kinds of ores and other grinding materials.

Structure:

Ball Mill is composed of feeding part, discharging part, rotary part, transmission part(reducer, small transmission gear, electric motor, electric control) and other main parts. Hollow Shaft is made of steel castings, inner lining can be removable, rotary gear is machined by casting hobbing, cylinder body inlaid with wear-resistant liner with good wear resistance. The machine runs stably and has reliable performance.

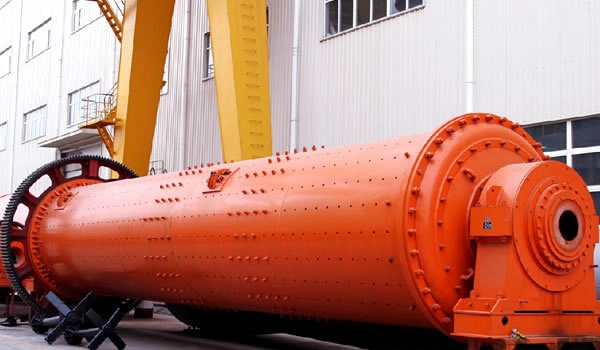

Ball Mill 1

Outstanding Advantages:

Reliable operation and long life: Due to its whole hydraulic operation, convenient to operate and easy to realize automatic, its reliability and service life increased expectancy greatly.

High grinding efficiency: The lining plate and grinding body are made of alumina ceramic, quartz, SILEX or special materials. The hard mineral is designed with no iron pollution. The cylinder, liner, media, partition board and discharge grate are made of high-quality original combination, it improves the grinding efficiency greatly.

Large capacity: Large feeding amount and reasonable feed opening design increases the amount of feed and improves work efficiency.

Environmental Protection: Ultra-fine ball mill and the closed system formed by classifier achieves negative pressure transmission with no dust, reduces the harm to human health.

Technical Data

Ball Mill
ModelShell rotation speed
（r/min）		Ball load
(t)		Feeding size
(mm)		Discharging size
(mm)		Capacity
(t/h)		Motor power
(kw)		Total weight
(t)
Ф900×180036-381.5<200.075-0.890.65-218.55.85
Ф900×3000362.7<200.075-0.891.1-3.5226.98
Ф1200×2400363<250.075-0.61.5-4.83013.6
Ф1200×3000363.5<250.074-0.41.6-53714.3
Ф1200×450032.45<250.074-0.41.6-5.85515.6
Ф1500×300029.77.5<250.074-0.42-57519.5
Ф1500×45002711<250.074-0.43-611022
Ф1500×57002812<250.074-0.43.5-613025.8
Ф1830×300025.411<250.074-0.44-1013034.5
Ф1830×450025.415<250.074-0.44.5-1215538
Ф1830×640024.121<250.074-0.46.5-1521043
Ф1830×700024.123<250.074-0.47.5-1724543.8
Ф2100×300023.715<250.074-0.46.5-3615545
Ф2100×450023.724<250.074-0.48-4324556
Ф2100×700023.726<250.074-0.412-4828059.5
Ф2200×450021.527<250.074-0.49-4528054.5
Ф2200×650021.735<250.074-0.414-2638061
Ф2200×700021.735<250.074-0.415-2838062.5
Ф2200×750021.735<250.074-0.415-3038064.8
Ф2400×30002123<250.074-0.47-5024558
Ф2400×45002130<250.074-0.48.5-6032072
Ф2700×400020.740<250.074-0.422-8038095
Ф2700×450020.748<250.074-0.426-90480102
Ф3200×45001865<250.074-0.4As per process conditions630149
Ф3600×45001790<250.074-0.4As per process conditions850169
Ф3600×600017110<250.074-0.4As per process conditions1250198
Ф3600×850018131<250.074-0.445.8-2561800260
Ф4000×500016.9121<250.074-0.445-2081500230
Ф4000×600016.9146<250.074-0.465-2481600242
Ф4000×670016.9149<250.074-0.475-2521800249
Ф4500×640015.6172<250.074-0.484-3062000280
Ф5030×640014.4216<250.074-0.498-3862500320
Ф5030×830014.4266<250.074-0.4118-5003300403
Ф5500×850013.8338<250.074-0.4148-6154500525
Ceramic Ball Mill
ModelFeeding capacity
（t/time）		Shell rotation speed
（r/min）		Reference motor
（kw）		Liner material
600×7000.05502.2Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials）
800×6000.075423
900×12000.238.55.5
1300×15000.5337.5
1500×18001.228.511
1800×20001.52415
2600×2800516.537
3000×38001014.557.2
3200×46001513.575
Rod Mill
ModelShell Specifications （mm）Shell rotation speed
（r/min）		Feeding size
(mm)		Discharging size
(mm)		Processing capacity
(t/h)		Power
(kw)		Total weight
(t)
DiameterLength
MBS0918900180036-38≤250.833-0.1470.62-3.218.55.9
MBS0924900240036≤250.833-0.1470.81-4.3226.7
MBS12241200240036≤250.833-0.1471.1-4.93013.9
MBS15301500300029.7≤250.833-0.1472.4-7.57519.8
MBS18301830300025.4≤250.833-0.1474.8-11.613034.9
MBS21302100300023.7≤250.833-0.14714-3515546.5
MBS21362100360023.7≤250.833-0.14719-4318048.7
MBS24302400300021≤500.833-0.14725-6524559.7
MBS27362700360020.7≤500.833-0.14732-8638092.5
MBS27402700400020.7≤500.833-0.14732-9240095
MBS32453200450018≤500.833-0.14764-180630149
