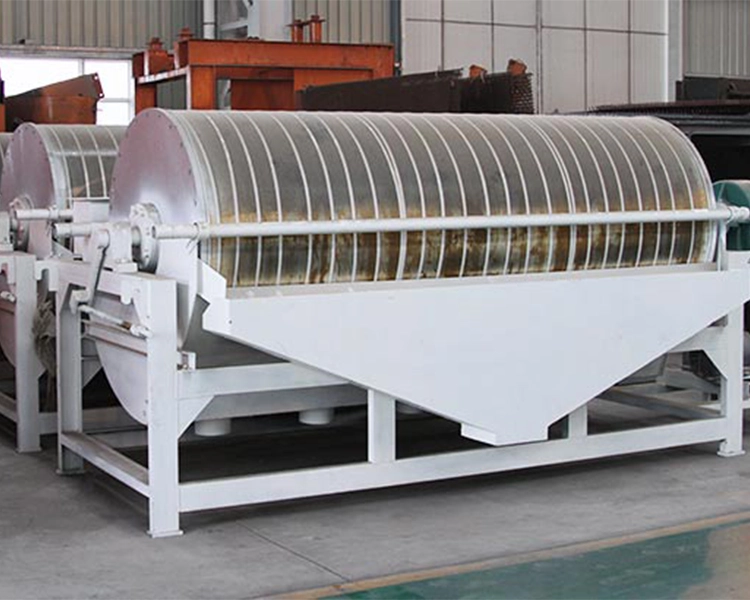

Magnetic Separator
The Magnetic Separator is suitable for the wet magnetic separation of the magnetite, pyrrhotite, roasted ore, ilmenite and other materials which size is smaller than 3 mm, it can also be used in iron removal operation such as coal, non-metallic minerals, building materials, etc. The magnetic system of magnetic separator is made of high-quality ferrite materials or composite with rare earth magnets.
-
Feeding size
0-3mm
-
Production Capacity
10-430t/h
-
Warranty
12 Months
-
Applied Materials
Iron ore, hematite, pyrrhotite, limonite, roasted ore, ilmenite, magnetite, copper ore, gold ore, coal, quartzite
Product Introduce

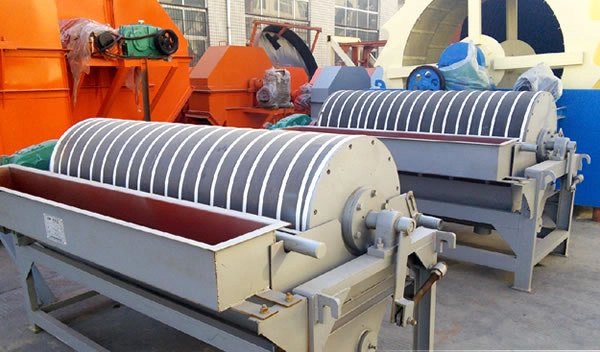

Magnetic Separator
The magnetic separator is suitable for the wet magnetic separation of the magnetite, pyrrhotite, roasted ore, ilmenite and other materials which size is smaller than 3 mm, it can also be used in iron removal operation such as coal, non-metallic minerals, building materials, etc. The magnetic system of magnetic separator is made of high-quality ferrite materials or composite with rare earth magnets, the average magnetic induction intensity of tube surface is 100 ~ 600mT. We can provide downstream, semi-countercurrent, counter-current and many other various forms of magnetic separator according to user needs. This product has the advantages of simple structure, large processing capacity, convenient operation and easy maintenance.
Advantages:
Wide application range and save equipment costs: for coal mines, foundry sand, refractory materials and other industries that need iron removal operations.
Save resources: the tailing that not fully restored can be recycled.
High grade, low load: takes up small area, good separation for magnetic mineral, reduce the load of next process.
High product quality: good iron removal effect is good and high mineral precision.
Technical Data
| Model | Shell diameter （mm） | Shell lenght （mm） | Shell rotation speed（r/min） | Feeding size （mm） | Processing capacoty （t/h） | Power（kw） |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
