Combined Rice Milling Plant
rice destoner, rice huller, rice separator, rice mill, rice grader, and rice bucket elevator, etc
-
Capacity
20-30ton/day, 800-1500kg/h final rice
-
Power
25-58kw
-
Service
Customization, installation, guidance and training
-
Cooperation
Factory Directly
-
Include Machine
rice destoner, rice huller, rice separator, rice mill, rice grader, and rice bucket elevator, etc
Product Introduce
This is our newly designed rice processing line, which consists of complete rice processing machines. It can process paddy rice into national standard white rice just in one process. This 20-30T/D rice processing mill is suitable for small-scale rice milling process, which can process about 1100-1600kg paddy and get about 800-1500kg white rice per hour. And the capacity and the machines in the rice processing line can be customized as your special requirement. So it’s the most ideal rice processing machine for urban, rural, small, and medium-sized rice processing plants.
| Model | HCRM-20 | HCRM-25 | HCRM-30 | ||
| Capacity | 20ton/day, 800-1000kg/h | 25ton/day, 1000-1200kg/h | 25ton/day, 1100-1350kg/h | 30ton/day, 1250-1500kg/h | 30ton/day, 1500-1800kg/h |
| Power | 25kw | 28kw | 58kw | 32kw | 66kw |
| Factory Dimension | 4500*2500*3500mm | 4500*2500*3500mm | 14000*6000*5000mm | 4500*2800*4000mm | 4500*2800*4000mm |
Rice Mill Equipment Introduction

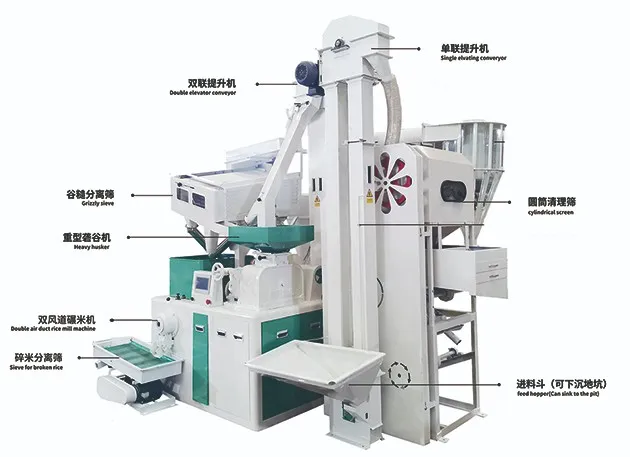

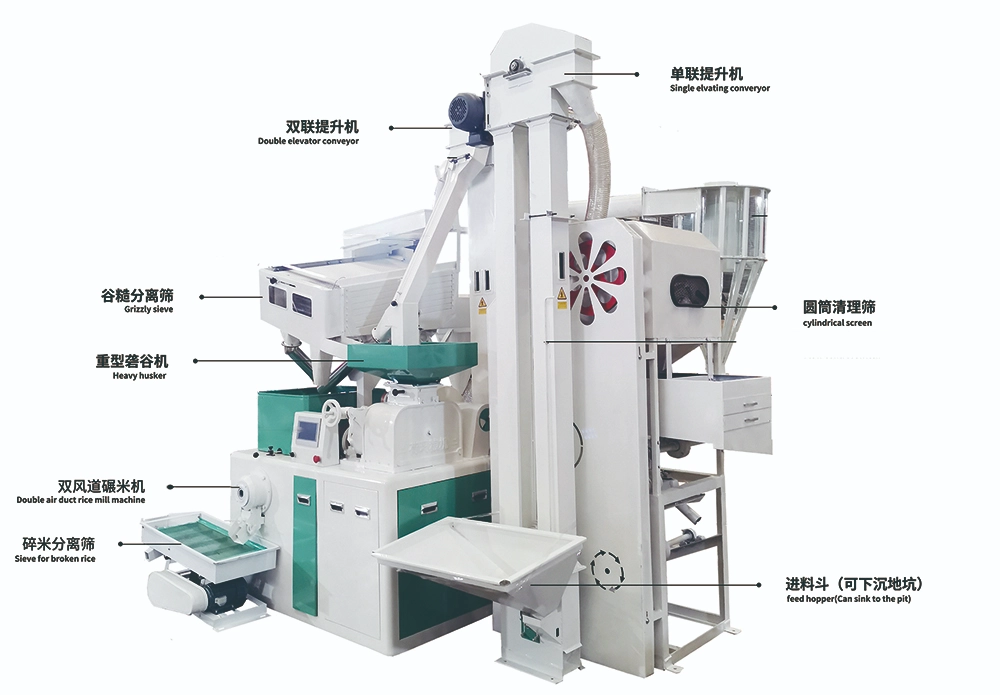

The rice processing machine is also a complete rice processing machine, it contains a combined rice cleaning machine, rice hulling machine, rice separator machine, rice mill machine, and rice elevator, etc. The paddy separation effect is very good, high working efficiency, small size can be easily set in any place or station or farms according to user's needs. Easy to operate and maintain, with less broken rate.
This is our newly designed rice processing line, which consists of complete rice processing machines. It can process paddy rice into national standard white rice just in one process. This 20-30T/D rice processing mill is suitable for small-scale rice milling process, which can process about 30-42ton paddy per day and get about 800-1800kg white rice per hour. And the capacity and the machines in the rice processing line can be customized as your special requirement. So it’s the most ideal rice processing machine for urban, rural, small, and medium-sized rice processing plants.
Parameter
| 20T/D Rice Mill Machine - Machine List | 30T/D Rice Mill Machine - Machine List | ||||
| Name | Model | Power(kw) | Name | Model | Power(kw) |
| Single Elevator | TDTG18/08 | 0.75 | Single Elevator | TDTG20/11 | 1.1 |
| Drum Sieve | SCQY40 | 0.55 | Combined Cleaner Destoner Machine | ZQS70 | 0.5 |
| Combined Cleaner Destoner Machine | ZQS50A | 1.5 | Centrifugal Fan | 4-72 | 3 |
| Centrifugal Fan | 4-72 | 1.5 | Double Elevator | TDTG18/08*2 | 1.1 |
| Double Elevator | TDTG18/08*2 | 0.75 | Rice Huller | LG20 | 4 |
| Rice Huller | LG15A | 4 | Paddy Rice Separator | MGCZ80*7 | 5.5 |
| Paddy Rice Separator | MGCZ70*5A | 0.75 | Centrifugal Fan | 4-72 | 1.1 |
| Strong pull wind emery roller rice mill | NS150 | 15 | Strong pull wind emery roller rice mill | MNMS15B | 18.5 |
Rice Mill Plant Layout Design
Our rice mill machines can be processed independently for agricultural production and continuous processing of commodity rice. It also can be designed according to your different needs. Welcome contact us for the details.
Optional Equipments:
- Rice Polishing Machine: rice polising machine, which polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice
- Rice Color Sorter: the rice color soting machine is used to sort bad, milky, Chalky, Paddy, foreign materials out. The CCD signal while blanking is been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.
- Rice Grading Machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, and etc.
- Rice Packing Machine: Set the weight of each bag of maters for packing according to your needs and pack the white rice in bag, preparing milled rice for transport to the customer.
Rice Mill Machine Application
Our rice mill can process steamed rice, white rice, long rice, short rice, glutinous rice, etc. It is very suitable for farmer use, rice process workshop, rice factory, or reselling. Welcome contact us for the details.
Installation and Debugging
- 1. We provide free operation manuals and online instructions for installation and debugging;
- 2. Engineers can also be arranged to go to the customer's site to guide the installation, debugging of equipment and training workers.
Pack and Ship
20-30TPD Rice Milling Plant
- 1. The spare parts and control cabinet will be loaded in wooden box.
- 2. The main machine is nude packing or plastic packing.
- 3. Also can do as customer's request.
Interested in this machine.
Application
The 20-30TPD Small Rice Milling Plant are widely used in grain storage and processing enterprises.
paddy
barley
maize
sesame
black rice
soybeans
pea
red beans
coffee beans
orchid bean
lentils
