50-100TPD Rice Milling Plant

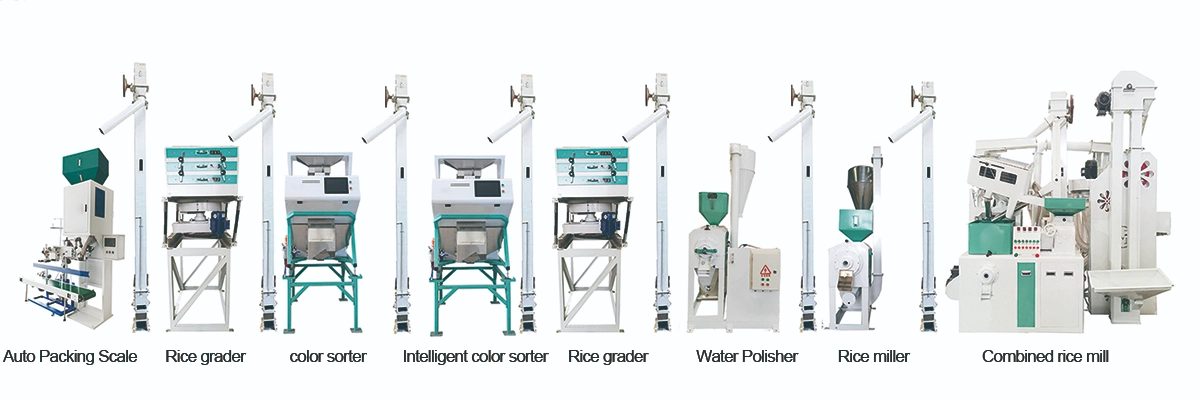

rice destoner, rice huller, rice separator, rice mill, rice grader, and rice bucket elevator, etc
-
Capacity
50-100ton/day, 2200-3600kg/h final rice
-
Power
143-235kw
-
Service
Customization, installation, guidance and training
-
Cooperation
Factory Directly
-
Include Machine
rice destoner, rice huller, rice separator, rice mill, rice grader, and rice bucket elevator, etc
Product Introduce
| Model | HCRM-50 | HCRM-100 |
| Capacity | 60ton/day, 2200-2600kg/h | 100ton/day, 4-5ton/h |
| Power | 143kw | 235kw |
| Factory Dimension | 13500*3500*5500mm | Custom |
Rice Mill Equipment Introduction
With full build install frame to make the whole set rice mill machine from clean step to final packing. Automatic control box to control different section working, advanced technical skills, compact structure, high outlet advantages, and low broken rice rate.It mainly suitable for the rice factory and rice farms. All the machines working details can be customized according to your different needs for the rice mill plant.
This 50-100T/D Complete Rice Mill Plant is a middle large rice processing machine, which contains a rice mill machine, rice polisher, rice color sorter machine, vibrating screen, rice destoner machine, rice huller, paddy rice separator machine, rice grader machine, and rice packing machine. It can get 2200-3600kg final rice per hour from paddy rice.
Parameter
| No. | 50Ton/Day Rice Mill Machine- Main Machine List | 100T/D Complete Rice Mill Machine - Main Machine List | ||
| Name | Quantity | Name | Quantity | |
| 1 | Drum Sieve Cleaner | 1 | Drum Sieve Cleaner | 1 |
| 2 | Vibratory Sieve | 1 | Vibratory Sieve | 1 |
| 3 | De-stoner | 1 | De-stoner | 1 |
| 4 | Paddy Husker | 1 | Pneumatic Paddy Huller | 2 |
| 5 | Paddy Separator | 1 | Paddy Rice Separator | 1 |
| 6 | Rice Whitener | 3 | Emery Rice Whitener | 2 |
| 7 | White Rice Grader | 2 | Iron Roller Rice Whitener | 1 |
| 8 | Mist Polisher | 1 | White Rice Grader | 2 |
| 9 | Color Sorter with compressor | 1 | Rice Polisher | 1 |
| 10 | Bucket Elevator | 16 | Color Sorter with compressor | 1 |
| 11 | Rice Packing machine | 1 | Bucket Elevator | 15 |
| 12 | Rice Packing Machine | 1 | ||

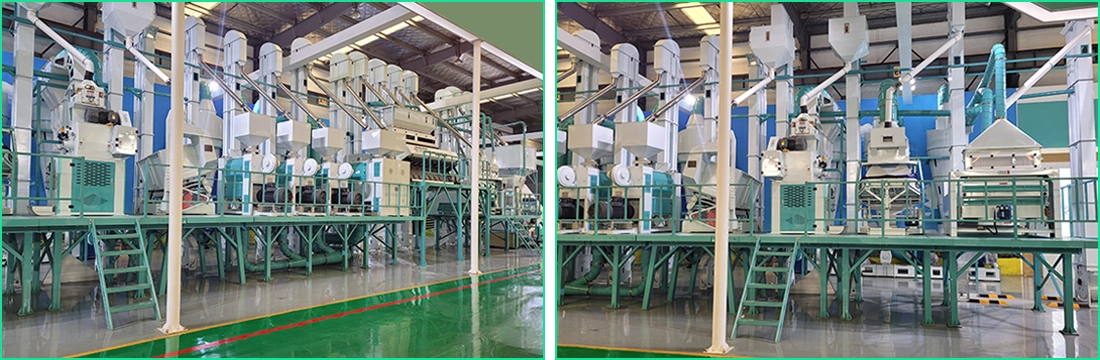

Rice Mill Plant Layout Design
Our rice mill machines can be processed independently for agricultural production and continuous processing of commodity rice. It also can be designed according to your different needs. Welcome contact us for the details.

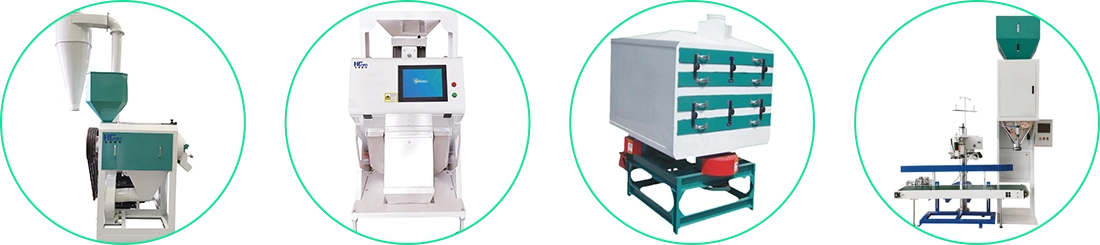

Optional Equipments:
- Rice Polishing Machine: rice polising machine, which polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice
- Rice Color Sorter: the rice color soting machine is used to sort bad, milky, Chalky, Paddy, foreign materials out. The CCD signal while blanking is been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.
- Rice Grading Machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, and etc.
- Rice Packing Machine: Set the weight of each bag of maters for packing according to your needs and pack the white rice in bag, preparing milled rice for transport to the customer.
Rice Mill Machine Application
Our rice mill can process steamed rice, white rice, long rice, short rice, glutinous rice, etc. It is very suitable for farmer use, rice process workshop, rice factory, or reselling. Welcome contact us for the details.
Installation and Debugging
- 1. We provide free operation manuals and online instructions for installation and debugging;
- 2. Engineers can also be arranged to go to the customer's site to guide the installation, debugging of equipment and training workers.
Pack and Ship
20-30TPD Rice Milling Plant
- 1. The spare parts and control cabinet will be loaded in wooden box.
- 2. The main machine is nude packing or plastic packing.
- 3. Also can do as customer's request.
Interested in this machine.
Application
The 50-100TPD Rice Milling Plant are widely used in grain storage and processing enterprises.
paddy
barley
maize
sesame
black rice
soybeans
pea
red beans
coffee beans
orchid bean
lentils
