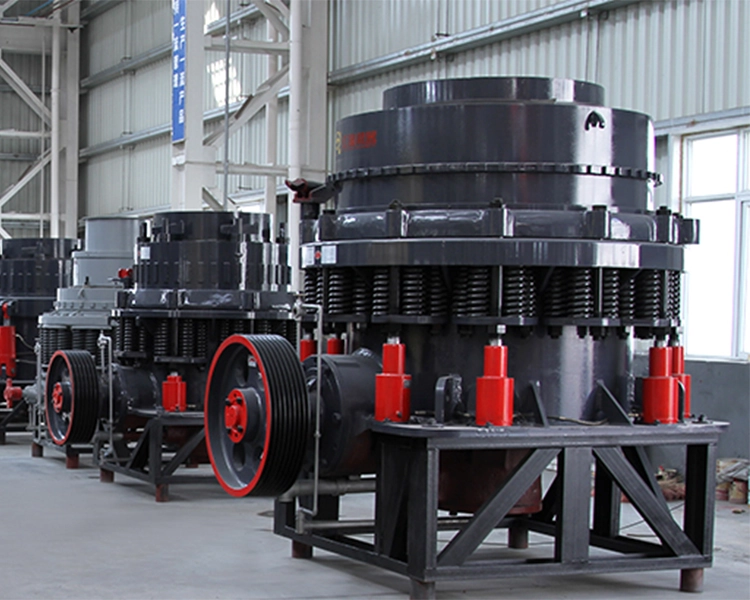

Cone Crusher
Cone crusher, commonly refer to spring cone crusher(PY series cone crusher)
-
Production capacity
12-1000 t/h
-
Max Input Size
35-300mm
-
Discharging Range
3-60mm
-
Application
It is widely used to crush the stones and ores with medium and high hardness, such as aggregate, gravel, granite, basalt, iron ore, gold ore and other kinds of minerals in mining,quarry, construction and other industries.
Product Introduce
Introduction of Cone Crusher
- 1.Cone crusher, commonly refer to spring cone crusher(PY series cone crusher),it is widely used to crush the stones and ores with medium and high hardness, such as aggregate, gravel, granite, basalt, iron ore, gold ore and other kinds of minerals in mining,quarry, construction and other industries. Besides spring cone crusher, we also provideSymons cone crusher,hydraulic cone crusher and multi-cylinder hydraulic cone crusher.
- 2.The safety spring system adopts the overload protection device,which makes foreign materials go through the crushing chamber without bringing damage to the machine. The sealing modes are dry oil or water, guaranteeing the reliable production.
- 3.Cone crusher abopts independent multi-point controlling oil lubricationg system, which can ensure the double protection of the bearing lubrication.
- 4.The crushing chamber is decided by the crushing prupose of materials. The standard model is suitable for primary and medium/secondary crushing and the medium model and shout head model is suitable for fine crushing.
Advantages of Cone Crusher
- 1.High cruhsing capacity,it can be up to 12-1000t/h.
- 2.Laminated crushing technology guarantees excellent particle size and particle shape.
- 3.Enhanced desigh makes its reliable operation.
- 4.Durable, long service life.
- 5.Hydraulic lubrication system guarantees the energy-saving and easy maintenance.
Cone Crusher Price
Cone crusher price depends on different crusher specifications. As the leading mining crusher manufacturer with almost 40 year history in China, we will provide maximum preferential price and discount for you. Welcome to visit our company and factory.
Technical Data
Cone Crusher
| Specification | Model | Diameter of large end of crushing cone (mm) | Max.feeding size(mm) | Width of discharge opening (mm) | Processing capacity (t/h) | Motor power (kw) | Total weight （t） | Dimensions (L×W×H) （mm） |
| Φ600 | PYB600 | 600 | 65 | 12-25 | 40 | 8P 30 | 5 | 2234×1370×1675 |
| PYD600 | 35 | 3-13 | 12-23 | 5.5 | 2234×1370×1675 | |||
| Φ900 | PYB900 | 900 | 115 | 15-50 | 50-90 | 8P 55 | 11.2 | 2692×1640×2350 |
| PYZ900 | 60 | 5-20 | 20-65 | 11.2 | 2692×1640×2350 | |||
| PYD900 | 50 | 3-13 | 15-50 | 11.3 | 2692×1640×2350 | |||
| Φ1200 | PYB1200 | 1200 | 145 | 20-50 | 110-168 | 8P 110 | 24.7 | 2790×1878×2844 |
| PYZ1200 | 100 | 8-25 | 42-135 | 25 | 2790×1878×2844 | |||
| PYD1200 | 50 | 3-15 | 18-105 | 25.3 | 2790×1878×2844 | |||
| Φ1750 | PYB1750 | 1750 | 215 | 25-50 | 180-360 | 8P 160 | 50.3 | 3910×2894×3809 |
| PYZ1750 | 185 | 10-30 | 80-210 | 50.3 | 3910×2894×3809 | |||
| PYD1750 | 85 | 5-13 | 60-180 | 50.2 | 3910×2894×3809 | |||
| Φ2200 | PYB2200 | 2200 | 300 | 30-60 | 420-700 | 8P 280-260 | 80 | 4622×3302×4470 |
| PYZ2200 | 230 | 10-30 | 130-410 | 80 | 4622×3302×4470 | |||
| PYD2200 | 100 | 5-15 | 80-200 | 81.4 | 4622×3302×4470 |
Multi-Cylinder Hydraulic Cone Crusher
| Model | Cavities | Broken cone big end diameter（mm） | Feeding size（mm） | Maximum Feeding size（mm） | Adjusting Range of Discharge port（mm） | Capacity（t/h） | Power（kw） | Weight of main machine（t） |
| HPM200 | C1 | 900 | 185 | 145 | 22 | 160~250 | 160 | 11 |
| C2 | 125 | 100 | 18 | 145~250 | ||||
| C3 | 95 | 75 | 14 | 120~250 | ||||
| F1 | 76 | 60 | 12 | 108~210 | ||||
| F2 | 54 | 45 | 10 | 81~210 | ||||
| HPM300 | C1 | 1100 | 235 | 190 | 26 | 230~445 | 220 | 20 |
| C2 | 211 | 170 | 20 | 200~445 | ||||
| C3 | 150 | 120 | 16 | 180~445 | ||||
| F1 | 107 | 85 | 14 | 160~220 | ||||
| F2 | 53 | 40 | 12 | 140~220 | ||||
| HPM400 | C1 | 1400 | 299 | 240 | 35 | 270~630 | 315 | 27 |
| C2 | 198 | 160 | 25 | 243~630 | ||||
| C3 | 111 | 90 | 18 | 210~630 | ||||
| F1 | 92 | 75 | 15 | 162~370 | ||||
| F2 | 52 | 40 | 13 | 126~370 | ||||
| HPM500 | C1 | 1500 | 335 | 270 | 38 | 365~790 | 400 | 40 |
| C2 | 286 | 230 | 30 | 328~790 | ||||
| C3 | 204 | 165 | 22 | 280~790 | ||||
| F1 | 133 | 105 | 20 | 202~450 | ||||
| F2 | 95 | 75 | 16 | 158~450 | ||||
| HPM800 | C1 | 2000 | 353 | 280 | 38 | 616~1100 | 630 | 70 |
| C2 | 297 | 240 | 38 | 522~1100 | ||||
| C3 | 219 | 175 | 22 | 380~1100 | ||||
| F1 | 155 | 125 | 20 | 328~730 | ||||
| F2 | 92 | 75 | 16 | 270~730 | ||||
Compound Cone Crusher (Symons)
| Type | Model | Diameter of Large end of Crushing Cone（mm） | Feeding Size（mm） | Max.feeding size（mm） | Adjusting Range of Discharge Opening（mm） | Processing capacity（t/h） | Main motor power（kw） | Machine weight（t） |
| PSG 1300 | 1313 | 1295 | 137 | 110 | 13-31 | 109-181 | 160 | 23 |
| 1321 | 210 | 170 | 16-38 | 132-253 | ||||
| 1324 | 241 | 190 | 19-51 | 172-349 | ||||
| 1306 | 64 | 50 | 3-16 | 36-163 | ||||
| 1308 | 89 | 70 | 6-16 | 82-163 | ||||
| 1310 | 105 | 85 | 8-25 | 109-227 |
Hydraulic Cone Crusher
| Model | Cavities | Broken cone big end diameter（mm） | Feeding Size（mm） | Max.feeding Size（mm） | Adjusting Range of Discharge Opening（mm） | Processing capacity（t/h） | Power（kw） | Weight of main machine（t） |
| GYS 300 | C1 | 910 | 175 | 140 | 13-38 | 81-180 | 90 | 10 |
| C2 | 102 | 80 | 9-22 | 60-180 | ||||
| F1 | 76 | 60 | 3-16 | 36-145 | ||||
| F2 | 41 | 30 | 3-13 | 36-130 | ||||
| GYS 400 | C1 | 1200 | 241 | 190 | 19-51 | 207-400 | 200 | 20 |
| C2 | 210 | 168 | 16-38 | 162-350 | ||||
| C3 | 137 | 110 | 13-31 | 126-310 | ||||
| F1 | 105 | 85 | 8-25 | 109-230 | ||||
| F2 | 89 | 70 | 6-16 | 82-230 | ||||
| F3 | 64 | 50 | 3-16 | 40-230 | ||||
| GYS 500 | C1 | 1600 | 269 | 215 | 25-64 | 280-650 | 280 | 40 |
| C2 | 241 | 190 | 22-51 | 258-450 | ||||
| C3 | 209 | 170 | 16-38 | 180-410 | ||||
| F1 | 133 | 105 | 10-25 | 162-355 | ||||
| F2 | 89 | 70 | 6-19 | 136-330 | ||||
| F3 | 70 | 55 | 5-13 | 90-300 |
Single-cylinder Hydraulic Cone Crusher
SC-S series of single cylinder hydraulic cone crusher parameters:
| Model | Cavities | Feeding Size （mm） | Maximum Feeding Size （mm） | Minimum Discharging Size （mm） | Power （kw） | Capacity（t/h） |
| SC100S | C1 | 250 | 200 | 22 | 90 | 85-170 |
| C2 | 200 | 160 | 19 | 70-130 | ||
| SC160S | C1 | 360 | 290 | 25 | 160 | 125-345 |
| C2 | 300 | 240 | 22 | 108-305 | ||
| SC250S | C1 | 450 | 360 | 35 | 250 | 267-605 |
| C2 | 400 | 320 | 29 | 225-515 | ||
| SC315S | C1 | 560 | 450 | 41 | 315 | 349-1050 |
| C2 | 500 | 400 | 38 | 318-892 |
Technical parameters of SC series single cylinder hydraulic cone crusher:
| Model | Cavities | Feeding Size （mm） | Maximum Feeding Size （mm） | Minimum Discharging Size （mm） | Power（kw） | Capacity （t/h） |
| SC100 | F1 | 150 | 120 | 10 | 90 | 45-135 |
| F2 | 90 | 70 | 10 | 43-118 | ||
| F3 | 38 | 30 | 4 | 25-40 | ||
| SC160 | F1 | 200 | 160 | 13 | 160 | 69-215 |
| F2 | 115 | 90 | 10 | 57-184 | ||
| F3 | 35 | 25 | 70-90 | |||
| SC250 | F1 | 240 | 190 | 16 | 250 | 116-396 |
| F2 | 140 | 110 | 13 | 97-346 | ||
| F3 | 70 | 55 | 9 | 90-251 | ||
| SC315 | F1 | 275 | 220 | 32 | 315 | 177-662 |
| F2 | 215 | 170 | 29 | 209-643 | ||
| F3 | 175 | 140 | 29 | 162-552 | ||
| F4 | 85 | 70 | 19 | 175-325 | ||
| SC560 | F1 | 300 | 240 | 22 | 560 | 448-1512 |
| F2 | 195 | 155 | 19 | 380-1373 | ||
| F3 | 90 | 70 | 13 | 357-912 | ||
| SC750 | F1 | 370 | 295 | 25 | 750 | 394-2181 |
| F2 | 300 | 240 | 19 | 342-2020 | ||
| F3 | 230 | 185 | 16 | 267-1814 | ||
| F4 | 120 | 95 | 13 | 248-1165 | ||
| F5 | 85 | 70 | 10 | 185-1170 |
