Vibrating Screen for sale

Vibrating Screen

Circular vibrating screen does circular motion, it is a kind of multi-layer, high-performance new-type vibrating screen.

  • Feeding Granularity

    ≤400mm

  • Production Capacity

    8-800m³/h

  • Warranty time

    12 month

  • Handling Materials

    Limestone, Calcite, Calcium Carbonate, Dolomite, Barite, Talc, Gypsum, Diabase, Quartzite, Bentonite

  • Yes! I am Interested!

    Free Quote

Product Introduce

Circular vibrating screen does circular motion, it is a kind of multi-layer, high-performance new-type vibrating screen. The circular vibrating screen adopts cylindrical eccentric shaft vibrator and offset partial block adjusting amplitude. It has the characteristics of long material sieve line length, more sieving specification, reliable structure, strong exciting force, high sieving efficiency, small vibration noise, durable sturdy, convenient maintenance and safe use. Circular vibrating screen widely applies in mine, building material, transportation for products grading. (Note: Our company can customize various specifications and vibration modes of vibrating screen according to the actual situation of different users).

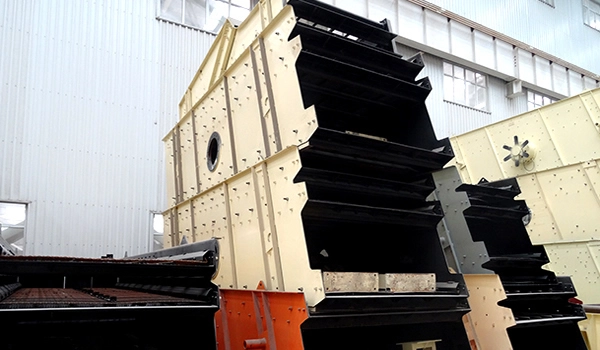

Vibrating Screen 1

Outstanding Advantages:

High screening and production efficiency: the phenomenon of the material plugging the screener hole is reduced due to the strong vibration of the screen box, so screening efficiency and productivity are higher.

Simple structure and energy-saving: Because of its simple structure and convenient removable screen, the electricity consumption of screening per ton of materials is less.

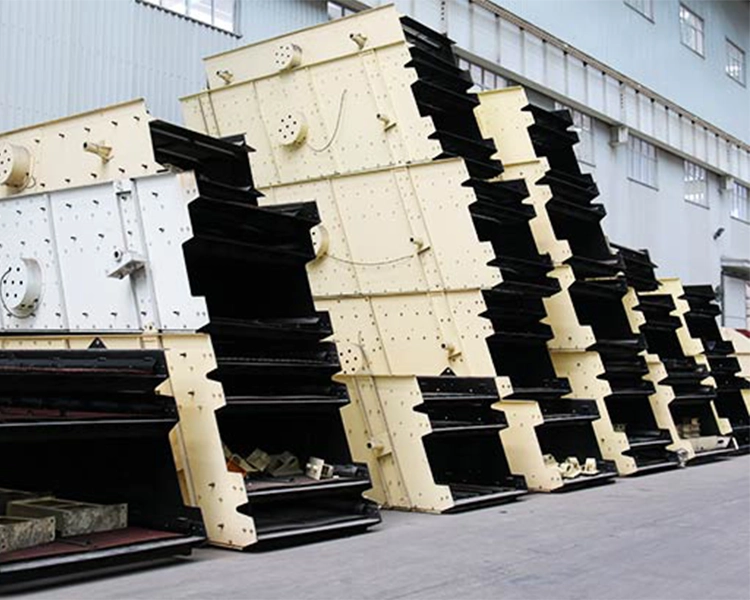

Vibrating Screen 2

Working Principle:

The circular vibrating screen is mainly composed of screen box, vibrator, suspension (or supporting) device, motors and other components. Motor drives vibrator spindle rotates through the triangle belt. Due to the centrifugal inertia force of unbalanced weight on the vibrator, the screen box is vibrated. Different amplitude can be obtained by changing the vibrator eccentric shaft.

Technical Data

ModelSieve  layerSieve  area (m²)Mesh  size (mm)Max. feeding  size (mm)>Processing capacity (m³/h)Vibrating  Frequency (r/min)Double  amplitude (mm)Motor  power (kw)Sieve  obliquity (°)Sieve specification (mm)>Dimensions (L×W×H) (mm)
2YK1225264-502008-60800-97086P   5.5KW201200×25002930×1860×870
3YK1225394-5020010-70800-97086P   5.5KW201200×25003070×1860×1210
2YK123027.24-5020012-78800-97086P   7.5KW201200×30003430×1860×870
3YK1230310.84-5020013-80800-97086P   7.5KW201200×30003570×1860×1210
2YK123728.884-5020015-86800-97086P   7.5KW201200×37004050×1860×870
3YK1237313.324-5020016-90800-97086P   7.5KW201200×37004270×1860×1210
2YK1535210.55-5020020-125800-97086P   11KW201500×35004120×2210×1230
3YK1535315.755-5020021-125800-97086P   11KW201500×35004360×2210×1610
2YK1545213.55-5020022-150800-97086P   11KW201500×45005120×2210×1230
3YK1545320.255-5020022-150800-97086P   15KW201500×45005360×2210×1610
4YK15454275-5020022-155800-97086P   15KW201500×45005930×2210×2060
2YK1548214.45-5020022.5-162800-97086P   11KW201500×48005420×2210×1230
3YK1548321.65-5020022.5-162800-970116P   15KW201500×48005660×2210×1610
4YK1548428.85-5020022.5-162800-97086P   18.5KW201500×48006230×2210×2060
2YK1848217.285-8020025-20675086P  18.5KW201800×48005420×2550×1420
3YK1848325.925-8020032-27675086P   18.5KW201800×48005660×2550×1780
4YK1848434.565-8020032-28575086P   22KW201800×48006290×2550×2160
2YK1854219.445-8020032-312800-97086P   22KW201800×54005960×2550×1420
3YK1854329.165-8020032-312800-97086P   22KW201800×54006260×2550×1780
4YK1854438.885-8020032-336800-97086P  22KW201800×54006830×2550×2160
2YK2160225.25-10020050-47597086P   30KW202100×60006720×2840×1530
3YK2160337.85-10020050-47597086P  30KW202100×60007030×2840×1910
4YK2160450.45-10020050-49797086P   37KW202100×60007300×2840×2380
2YK2460228.85-10020065-55097086P   30KW202400×60007020×3140×1530
3YK2460343.25-10020070-62097086P   37KW202400×60007300×3140×1910
4YK2460457.65-10020080-68097086P   45KW202400×60007600×3140×2380
2YK2870239.25-100200120-68075088P   22×2KW202800×70007600×4320×1620
3YK2870358.85-100200180-72075088P   22×2KW202800×70007800×4320×2120
2YK3072243.25-100200200-70075088P   22×2KW203000×72007800×4520×1750
3YK3072364.85-100200230-80075088P   22×2KW203000×72008000×4520×2300

Interested in this machine.

Get a Quote

Application

FAQ

We are 23 Years experience of design and manufacture rice corn wheat and grain machinery. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

It would be highly appreciated if you can provide details of your material specs, capacity and efficiency request, screen specification, motor power supply voltage and special brand needed.

Engineers available to service machinery overseas, including installation, commission and training, etc.

Yes, OEM/ODM service available.

Quality control by incoming material inspection, 100% in-production check and random check after packaging. Spare parts and technical solutions provided timely for machine failure.

Before delivery, we will test and adjust the machine working condition for you, then you can use directly when you get it.

T/T, L/C, Western Union, Cash accepted. Usually30% deposit with purhase order, 70% balance paid prior to shipment.
