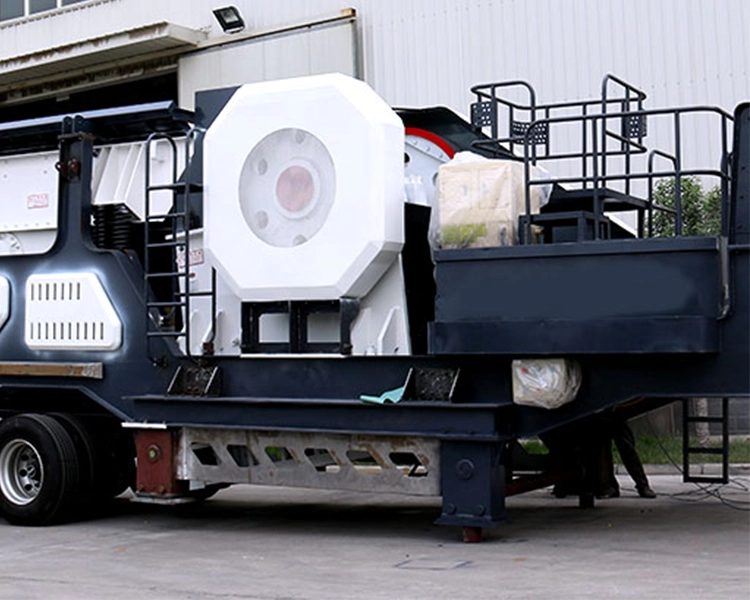

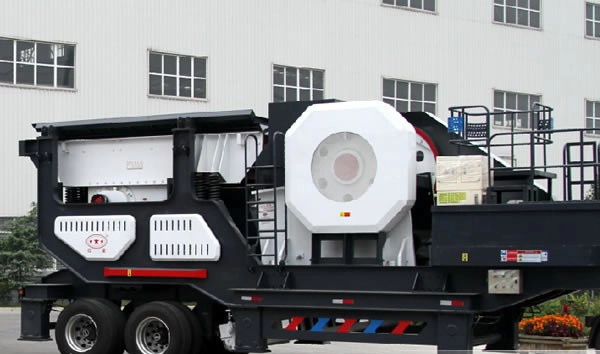

Mobile Crusher
Mobile crusher is a kind of movable crushing equipment, which integrates crushing and screening operation on one machine.
-
Production Capacity
70-650t/h
-
Max Feeding Size
350-800mm
-
Processing Material
stone, coal, limestone, granite, basalt, quartz, iron ore, gold ore, marble, construction waste, etc.
Product Introduce
Introduction of Mobile Crusher/Portable Crusher
- 1. Mobile crusher is a kind of movable crushing equipment, which integrates crushing and screening operation on one machine. It is widely used to process stones, ores, minerals, construction waste in mining, quarry and construction.
- 2. According to materials features and your requirements, it can be used for primary, medium and fine crushing by flexible crusher equipment configuration.
- 3. Mobile crusher can be independent operation and the raw materials can be processed without being transported from one place to another place, which greatly improving the production efficiency and saving costs.
- 4. Besides the tyre mounted mobile crusher, we also have crawler mounted mobile crusher for sale. You can choose the proper one according to your needs.
Advantages of Mobile Crusher/Portable Crusher
- 1. High production capacity, it can be up to 35-720t/h.
- 2. High mobility and flexible product configuration.
- 3. Strong adaptability to materials.
- 4. Saving transportation cost 20%.
- 5. Reliable operation and easy maintenance.
Mobile Crusher Price
Mobile crusher prices are different depends on different crusher specifications. As the mining crusher manufacturer with almost 40 years history in China, we will provide the maximum preferential price and discount for you. Welcome to visit our company and factory. What is more, you can send your inquiry at any time, we will contact you as soon as possible.
Technical Data
Mobile Jaw Crusher
| Model | HX938HD86 | HX1149HD98 | HX1349HD110 | HX1349HD125 |
| Transportation lenght(mm) | 12600 | 13500 | 14500 | 15200 |
| Transportation Width(mm) | 2600 | 2700 | 2800 | 2900 |
| Transportation Height(mm) | 3870 | 4200 | 4450 | 4500 |
| Maximum Lenght(mm) | 12500 | 14000 | 16100 | 16700 |
| Maximum Width(mm) | 4100 | 4500 | 5100 | 5100 |
| Maximum Height(mm) | 4100 | 4900 | 5000 | 5300 |
| Weight(t) | 39 | 57 | 55 | 65 |
| Tire Configuration | Dualaxial | Triaxial | Triaxial | Triaxial |
| Jaw Crusher | HD86 | HD98 | HD110 | HD125 |
| Maximum Feeding Size(mm) | 500 | 550 | 660 | 800 |
| Discharge opening range | 50-150 | 75-175 | 100-200 | 125-225 |
| Capacity(t/h) | 85-275 | 110-350 | 215-510 | 280-650 |
| Vibrating Feeder | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | B800×8.5m | B1000×9.5m | B1000×11m | B1200×11m |
| Side-opening Belt conveyor(optional) | B500×3m | B650×3.5m | B650×4m | B650×4m |
| Gensrt(optional) | 200KW | 250KW | 270KW | 400KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |
Mobile Impact Crusher
| Model | HX938F1210 | HX938F1214 | HX1149F1315 | HX938F1110 | HX1349F1315 |
| Transportation lenght(mm) | 12000 | 12000 | 13900 | 15450 | 15450 |
| Transportation Width(mm) | 2550 | 2550 | 2900 | 2950 | 2950 |
| Transportation Height(mm) | 3900 | 3900 | 4450 | 4500 | 4500 |
| Maximum Lenght(mm) | 12500 | 12500 | 13900 | 15450 | 15450 |
| Maximum Width(mm) | 3250 | 3260 | 3250 | 3250 | 3250 |
| Maximum Height(mm) | 5100 | 5200 | 5200 | 5200 | 5200 |
| Weight(t) | 39 | 44 | 54 | 62 | 62 |
| Impact crusher | PE-1210 | PE-1214 | PF-1315 | HD1110 | HD1315 |
| Maximum Feeding Size(mm) | 350 | 350 | 500 | 400 | 700 |
| Capacity(t/h) | 70-130 | 100-180 | 130-250 | 112 | 280 |
| Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 | ZSW130×4900 | ZSW130×4900 |
| Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M | B800×11M | B1200×11M |
| Side-opening Belt conveyor(optional) | B500×3.2m | B500×3.2m | B650×4m | B650×4m | B650×4m |
| Gensrt(optional) | 320KW | 320KW | 400KW | 320KW | 440KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-8 | RCYD(C)-12 |
Mobile Screening Plant
| Model | H3S1848 | H3S1860 | HX3S2160 |
| Transportation length(mm) | 10280 | 11480 | 11480 |
| Transportation Width(mm) | 2830 | 2830 | 3150 |
| Transportation Height(mm) | 4350 | 4350 | 4350 |
| Maximum Length(mm) | 11100 | 11800 | 11800 |
| Maximum Width(mm) | 3600 | 3600 | 3970 |
| Maximum Height(mm) | 6000 | 6000 | 6500 |
| Weight(t) | 16 | 18 | 19 |
| Tire Configuration | Dualaxial | Dualaxial | Dualaxial |
| Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 |
Mobile Sand Making Plant
| Model | HX3S1848V08 | HX3S1860V09 | HX3S2160V103 |
| Transportation length(mm) | 13500 | 15600 | 15600 |
| Transportation Width(mm) | 2830 | 2830 | 3100 |
| Transportation Height(mm) | 4350 | 4350 | 4480 |
| Maximum Length(mm) | 14650 | 16300 | 16300 |
| Maximum Width(mm) | 3900 | 3900 | 3900 |
| Maximum Height(mm) | 5980 | 6400 | 6550 |
| Weight(t) | 31 | 36 | 49 |
| Tire Configuration | Biax Fitted | Biax Fitted | Biax Fitted |
| Sand maker | HVI0815 | HVI0922 | HVI1032 |
| Discharging Belt Conveyor | B800×2.2M | B800×2.5M | B1000×2.5M |
| Belt under vibrating screen | B800×7M | B800×8M | B1000×8M |
| Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 |
Mobile Cone Crusher
| Model | HX3S185GYS300 | HX3S216GYS400 | HX3S216HP300 |
| Transportation length(mm) | 14500 | 15000 | 16000 |
| Transportation Width(mm) | 3000 | 3000 | 4550 |
| Transportation Height(mm) | 4400 | 4500 | 4600 |
| Maximum Length(mm) | 17000 | 16000 | 17000 |
| Maximum Width(mm) | 3400 | 3900 | 6900 |
| Maximum Height(mm) | 5800 | 6500 | 4700 |
| Weight(t) | 34.5 | 49.5 | 41 |
| Tire Configuration | Dualaxial | Triaxial | Triaxial |
| Cone crusher | GYS300 | GYS400 | HP300 |
| Discharging belt Conveyor | B650×15M×2 | B800×15M×2 | B800×15M×2 |
| Return belt conveyor | B650×14M | B800×14M | B800×16M |
| CONveyor Belt For Final Products | B500×15M | B800×6M | B650×15M×2 |
| Under Virbrating Screen | B800×7M | B800×8M | B800×9M |
| Vibrating Screen | 3YK1854 | 3YK2160 | 3YK2160 |
Mobile Impact Crush Screen Plant
| Model | HX3S185GYS300 | HX3S216GYS400 | HX3S216HP300 |
| Transportation length(mm) | 14500 | 15000 | 16000 |
| Transportation Width(mm) | 3000 | 3000 | 4550 |
| Transportation Height(mm) | 4400 | 4500 | 4600 |
| Maximum Length(mm) | 17000 | 16000 | 17000 |
| Maximum Width(mm) | 3400 | 3900 | 6900 |
| Maximum Height(mm) | 5800 | 6500 | 4700 |
| Weight(t) | 34.5 | 49.5 | 41 |
| Tire Configuration | Dualaxial | Triaxial | Triaxial |
| Cone crusher | GYS300 | GYS400 | HP300 |
| Discharging belt Conveyor | B650×15M×2 | B800×15M×2 | B800×15M×2 |
| Return belt conveyor | B650×14M | B800×14M | B800×16M |
| CONveyor Belt For Final Products | B500×15M | B800×6M | B650×15M×2 |
| Under Virbrating Screen | B800×7M | B800×8M | B800×9M |
| Vibrating Screen | 3YK1854 | 3YK2160 | 3YK2160 |
