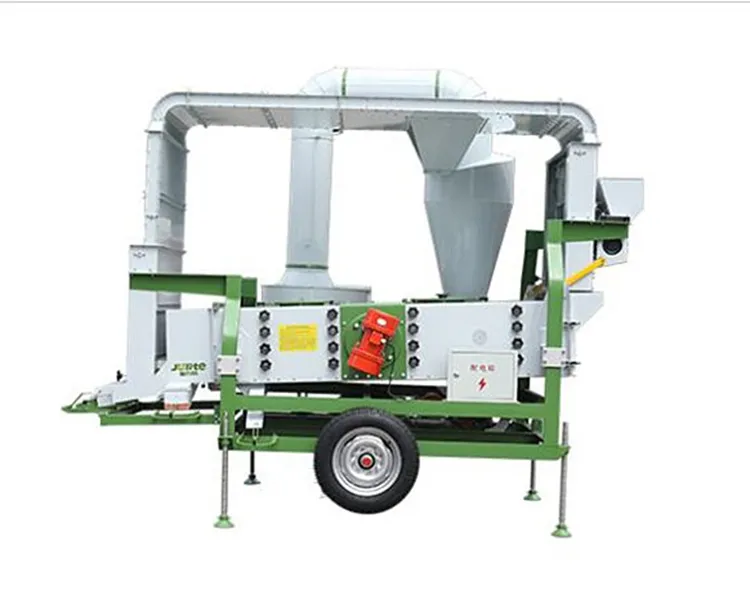

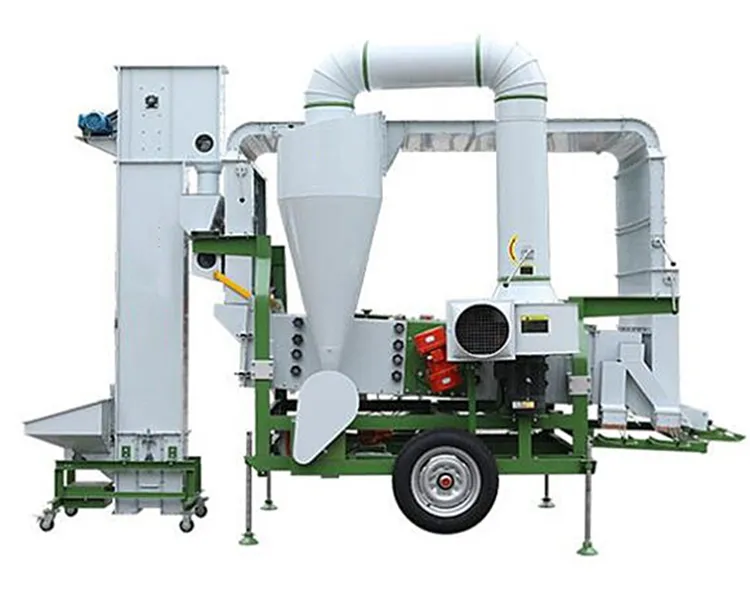

Air-Screen Cleaner
It is widely used in seed processing and agricultural product processing industry.
-
Model
5XFS Air Screen Cleaner, 5XFS Double Dust Removal Air Screen Cleaner
-
Capacity
7.5-10ton/h
-
Power
7.75-10KW
-
Layer
three, four, five
-
Application
rice, wheat, maize, bean etc
Product Introduce
Feature:
- It can clean light impurities through vertical air screen and the vibration sieve can clean big and small impurities.
- The material can be classified into big, medium and small particles with different layers of sieves.
- It is widely used in seed processing and agricultural product processing industry.
Technical Parameters:
| Model | Layer | Sieve size(mm) | Capacity(t/h) | Power(kw) | Weight(T) | Overall size(mm) |
| 5XFS-7.5FB | THREE | 1250*2400 | 7.5 | 8.5 | 1.82 | 5100*2050*3430 |
| 5XFS-7.5FC | FOUR | 1250*2400 | 7.5 | 8.5 | 1.86 | 5100*2050*3430 |
| 5XFS-10B | THREE | 1500*2400 | 10 | 10.5 | 2.01 | 5100*2300*3600 |
| 5XFS-10C | FOUR | 1500*2400 | 10 | 10.5 | 2.06 | 5100*2300*3600 |
| 5XFS-10D | FIVE | 1250*2400 | 10 | 7.75 | 2.56 | 3840*1880*4290 |
| 5XFS-7.5BS | THREE | 1250*2400 | 7.5 | 8.5 | 1.85 | 5100*2050*3430 |
| 5XFS-7.5CS | FOUR | 1250*2400 | 7.5 | 8.5 | 1.89 | 5100*2050*3430 |
| 5XFS-10BS | THREE | 1500*2400 | 10 | 10.5 | 2.04 | 5100*2300*3600 |
| 5XFS-10CS | FOUR | 1500*2400 | 10 | 10.5 | 2.09 | 5100*2300*3600 |
Feature:
- Double air screen and twice wind screening,especially benifit for the sesame cleaning
- The two air screens arrange symmetrically and control individually.
- The back-end air screen will remove some dust produced by some clods in the secondary wind selection, thus enhancing the brightness of finished product.
- Large sieve surface design of 1.25m×2.4m, multi-function and easy to change sieves.
- Bucket elevator and screw conveyor can be chosen in accordance with different materials.
- This cleaner is suitable for materials with high impurities, such as sunflower seed, melon seed, buckwheat, flax seed, sesame seed, etc. sesame cleaning machine or cleaning machine for sesame
Technical Parameters:
| Model | Layer | Sieve size(mm) | Capacity(t/h) | Power(kw) | Weight(kg) | Overall size(mm) |
| 5XFS-7.5FB | THREE | 1250*2400 | 7.5 | 9.35 | 1730 | 3920*2430*3440 |
| 5XFS-7.5FC | FOUR | 1250*2400 | 7.5 | 9.35 | 1770 | 3920*2430*3440 |
Interested in this machine.
Application
Processing effect:
paddy
barley
black rice
soybeans
sesame
orchid bean
pea
coffee beans
FAQ
We are 23 Years experience of design and manufacture rice corn wheat and grain machinery. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
It would be highly appreciated if you can provide details of your material specs, capacity and efficiency request, screen specification, motor power supply voltage and special brand needed.
Engineers available to service machinery overseas, including installation, commission and training, etc.
Yes, OEM/ODM service available.
Quality control by incoming material inspection, 100% in-production check and random check after packaging. Spare parts and technical solutions provided timely for machine failure.
Before delivery, we will test and adjust the machine working condition for you, then you can use directly when you get it.
T/T, L/C, Western Union, Cash accepted. Usually30% deposit with purhase order, 70% balance paid prior to shipment.
