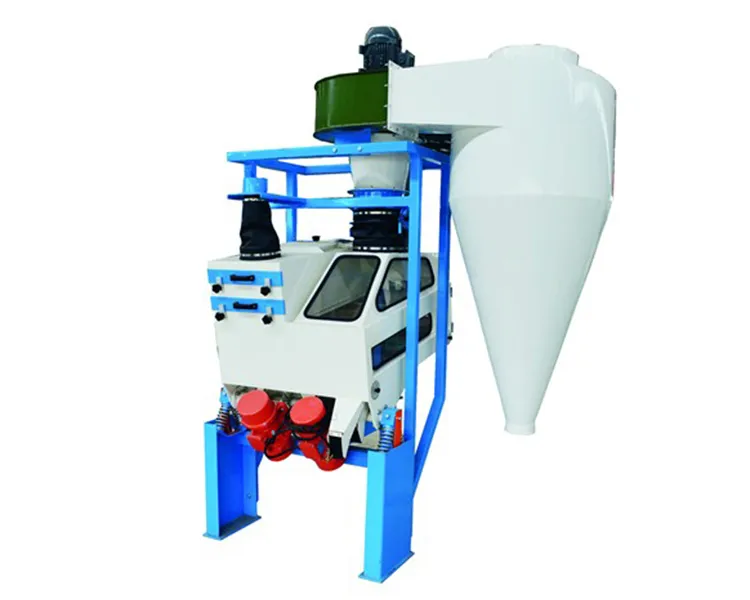

Combined Grain Cleaner
This machine uses the principle of the coordination of wind, vibration and sieve, with high production effect, classification, sand removal, mud performance, energy consumption, no dust, low noise, convenient operation, use and maintenance.
-
Model
FQL series/ TQLS series
-
Capacity
3-30ton/h
-
Power
0.5-46.2KW
-
Function
screening (large and small impurities), grading to remove stones, cleaning
-
Application
Rice, maize, wheat, soybeans, mung beans, sesame, oats, etc.
Product Introduce
The combined grain cleaner is mainly used to screen the grain crops (large and small impurities) after the raw grain is cleaned in the grain processing plant, classify and remove stones, concentrate light impurities (such as wheat, small corn cobs, etc.) and remove sand, stone, and mud .
This machine uses the principle of the coordination of wind, vibration and sieve, with high production effect, classification, sand removal, mud performance, energy consumption, no dust, low noise, convenient operation, use and maintenance.
Technique Parameters:
FQL series combined grain cleaner
| Model | Capacity(t/h) | Power(kw) | Weight(kg) | Overall size(mm) |
| FQL120 | 3 | 2*0.25 | 350 | 1500*1410*1850 |
| FQL160 | 5 | 2*0.37 | 500 | 1500*1810*2000 |
TQLS cleaning and destoner combined cleaner
| Model | Screen width(mm) | Output(t/h) | Air volume(m³/h) | Wind pressure(pa) | Amplitude(mm) | Speed(r/min) | size(mm) | Weight(kg) |
| FQLS85 | 850 | 1-1.5 | 4000 | ≤980 | 4-5 | 980 | 1170*110*2170 | 592 |
| FQLS100 | 1000 | 1.5-2 | 5000 | ≤980 | 4-5 | 980 | 1220*1270*2170 | 642 |
| FQLS120 | 1200 | 2-3 | 6000 | ≤980 | 4-5 | 980 | 1496*1445*2170 | 713 |
| FQLS160 | 1600 | 3-4 | 8000 | ≤980 | 4-5 | 980 | 2300*1445*2500 | 1126 |

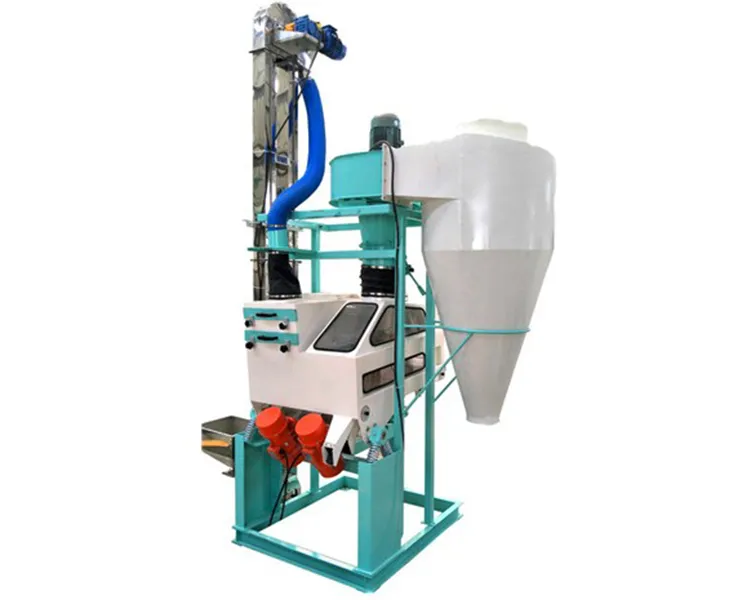

TQLS Gravity Destoner/Cleaner
TQLS Destoner/Cleaner machine is widely used for grain and oil industry such as
- Flour mill
- Semolina mill
- Rice mill
- Grain and seed cleaning plant
- Feed / Corn
- Oil factory
- Malt plant
- Coffee bean and cacao bean processing
Interested in this machine.
Application
TQLS Gravity Destoner/Cleaner
TQLS Destoner/Cleaner machine is widely used for grain and oil industry such as
wheat
Rice
maize
