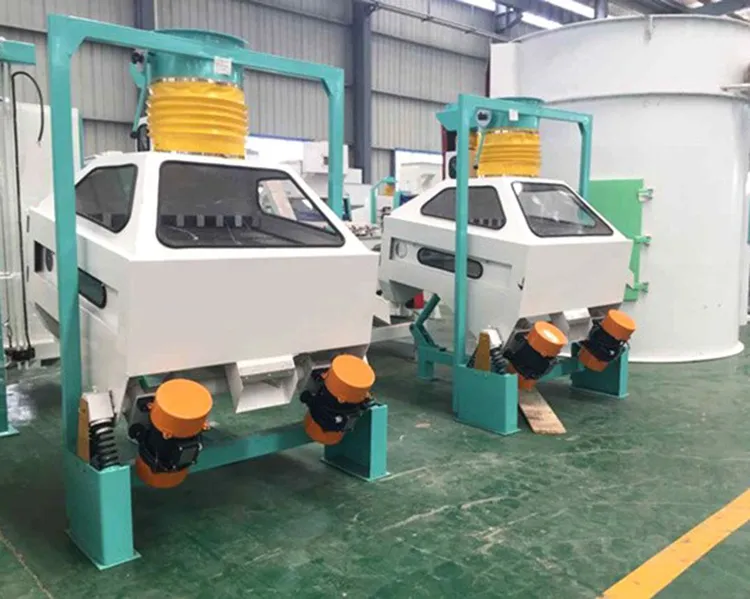

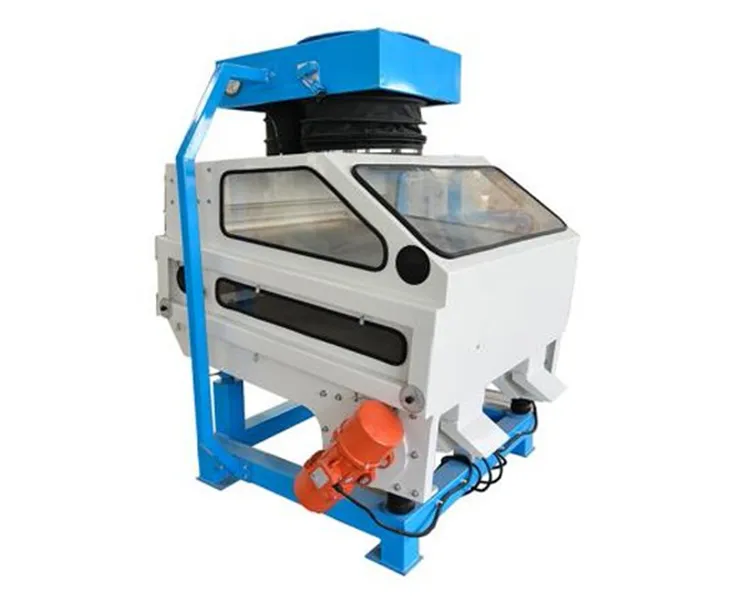

Destoner
TQSF gravity grading destoner is widely used in the flour milling, rice milling, feed and food processing industries.
-
Model
TQSF
-
Capacity
2-20ton/h
-
Power
0.5-1.1KW
-
Application
Wheat, corn, oats, buckwheat, barley, and beans
Product Introduce
TQSF gravity grading destoner is widely used in the flour milling, rice milling, feed and food processing industries. The material stream is stratified automatically on the working screen according to materials with different physical characteristics such as gravity, volumetric weight, coefficient of friction and suspension velocity etc. High density impurities such as stones can be reliable removal from a continuous material stream with high efficiency.
TQSF gravity rice destoning machine main features:
- Nice effects of grading stone-relieving and low energy consumption;
- Non-dust spreading, low noise and stable operation;
- Uses double electrical machine vibration of high production efficiency;
- Suitable for stone relieving of unhusked rice, wheat and corns after cleaning.
Technical Parameters:
Model | Capacity (t/h) | Vibration amplitude (mm) | Vibration frequency (r/min) | VibratingDirection Angle(°) | Air pressure (pa) | Air volume (m3/min) | Power (KW) | Weight (kg) | Size (mm) |
TQSX-63 | 2-3 | 3-4 | 940 | 5-9 | <980 | 125 | 0.25*2 | 280 | 1450*800*1800 |
TQSF-60 | 3-4 | 4-6 | 940 | 5-9 | <980 | 145 | 0.25*2 | 340 | 1300*916*1800 |
TQSF-100 | 6-9 | 4-6 | 940 | 5-9 | <980 | 160 | 0.25*2 | 400 | 1500*1160*1920 |
TQSF-125 | 8-11 | 4-6 | 940 | 5-9 | <980 | 170 | 0.37*2 | 500 | 1470*1496*1920 |
TQSF-150 | 12-15 | 4-6 | 940 | 5-9 | <980 | 200 | 0.55*2 | 600 | 1200*1476*1920 |
TQSF-175 | 16-20 | 4-5 | 940 | 5-9 | <980 | 250 | 0.25*2 | / | / |
Interested in this machine.
Application
The destoner is characterized by a wide range of applications: in addition to the standard applications of wheat, rye and corn, the TQSF series gravity grade stone remover can also be used for special processing of oats, buckwheat, barley, spelt wheat and millet Successfully applied to winemaking, distillation and ethanol production;

paddy

barley

maize

sesame

black rice

soybeans

pea

red beans

coffee beans

orchid bean

lentils
