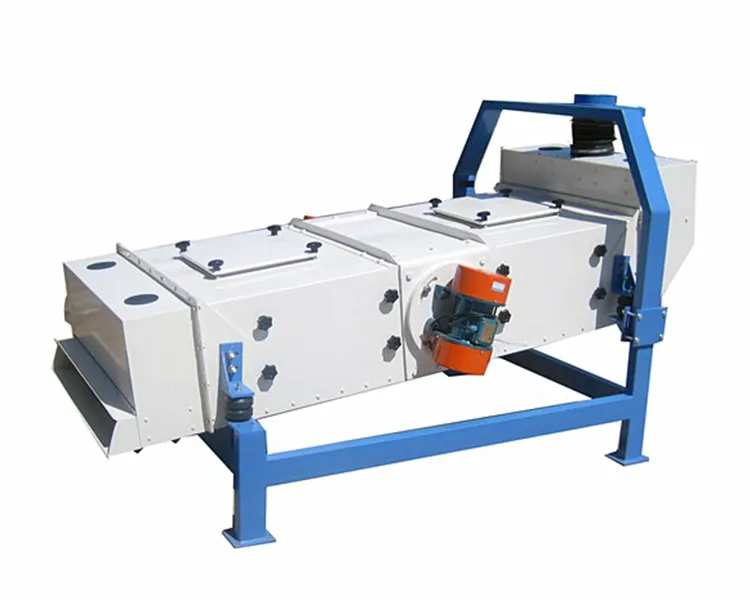

Vibration Cleaning Sieve
TQLZ series vibrating sieve is mainly used to screen and separate large, medium, small and light debris in grain.
-
Model
TQLZ Vibration Cleaning Sieve, 5XFJ Vibration Cleaning Sieve
-
Capacity
4-30ton/h
-
Power
0.5-1.5KW
-
Application
Flour milling, oil, brewing, rice milling, feed, chemical, food processing production lines
Product Introduce
TQLZ series vibrating sieve is mainly used to screen and separate large, medium, small and light debris in grain.
This equipment uses vibration motors, shock-absorbing rubber springs and other optimal components, with low noise, stable operation, large processing capacity, low energy consumption, good cleaning effect, good sealing performance, and no dust.
Feature:
- The machine is small in size, light in weight, large in output and excellent in performance;
- Scientific and reasonable structure, stable operation, low noise, high efficiency, energy saving and environmental protection;
- Fully enclosed structure, good airtightness, no dust spilling, safety and health;
- Compact structure, convenient operation and maintenance, stable and reliable mechanical performance;
- Small size, convenient process configuration;
Technical Parameters of TQLZ Vibration Cleaning Sieve:
Type | Capacity (T/H) | Power (KW) | Vibrating Frequency(R/MIN) | Vibrating Direction Angle(°) |
TQLZ80/150 | 4-6T | 2×0.25 | 920-950 | 0-45 |
TQLZ100/150 | 6-8T | 2×0.37 | 920-950 | 0-45 |
TQLZ125/200 | 8-10T | 2×0.37 | 920-950 | 0-45 |
TQLZ180/200 | 11-15T | 2×0.75 | 920-950 | 0-45 |

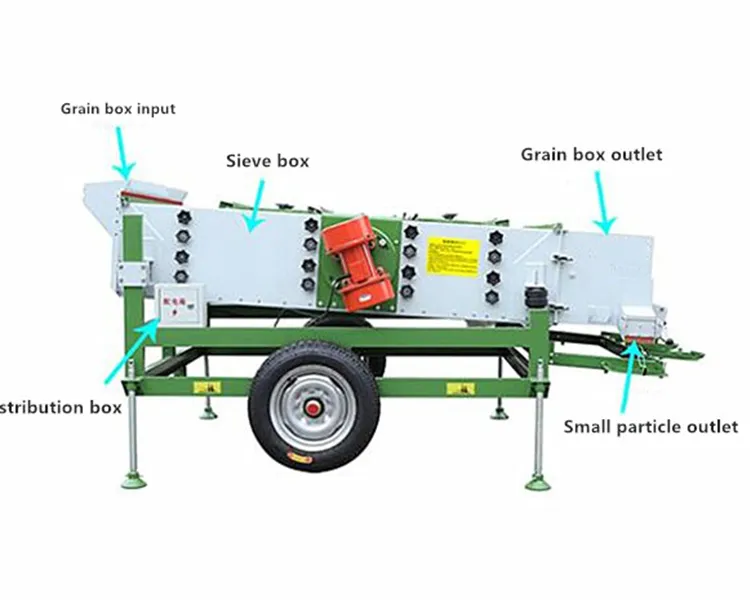

Product advantages of 5XFJ Vibration Cleaning Sieve:
- The original 2- and 3-layer flaps, when you don’t need to divide large grains, just press the handle;
- The whole machine has compact structure, simple operation and convenient cleaning, which can effectively prevent mixing;
- The sieve can be replaced at will to achieve the ideal screening effect.
Technical Parameters of 5XFJ Vibration Cleaning Sieve
| prodect | Model | Layer | Sieve Surface Area (mm) | Power kW | Capacity t/h | Weight Kg | Overall Size L×W×H mm |
| Vibration Grader | 5XFJ-5B | Three | 1000x2000 | 0.74 | 5 | 860 | 2910×1840×1800 |
| 5XFJ-5C | Four | 1000x2000 | 0.74 | 5 | 890 | 2910×1840×1800 | |
| 5XFJ-7.5B | Three | 1250x2400 | 1.5 | 7.5 | 1040 | 3500×2050×1880 | |
| 5XFJ-7.5C | Four | 1250x2400 | 1.5 | 7.5 | 1080 | 3500×2050×1880 | |
| 5XFJ-10B | Three | 1500x2400 | 1.5 | 10 | 1160 | 3500×2300×1880 | |
| 5XFJ-10C | Four | 1500x2400 | 1.5 | 10 | 1210 | 3500×2300×1880 | |
| 5XFJ-10D | Five | 1500x2400 | 1.5 | 10 | 1360 | 3500×2300×1740 | |
| 5XFJ-20Y | Double screen box | 1500x2400 | 1.5 | 15-20 | 1360 | 3500×2300×1740 | |
| Longer Vibration Grader | 5XFJ-5BC | Three | 1000x3000 | 1.1 | 5 | 1020 | 3950×1840×1860 |
| 5XFJ-5CC | Four | 1000x3000 | 1.1 | 5 | 1100 | 3950×1840×1860 | |
| 5XFJ-7.5BC | Three | 1250x3600 | 1.5 | 7.5 | 1200 | 4630×2050×2050 | |
| 5XFJ-7.5CC | Four | 1250x3600 | 1.5 | 7.5 | 1360 | 4630×2050×2050 |
Interested in this machine.
Application
Vibration cleaning sieve are used in the cleaning or grading of granular materials in flour milling, grease, brewing, rice milling, feed, chemical, food processing and other industries, and are widely used in grain storage and processing enterprises.
paddy
barley
maize
sesame
black rice
soybeans
pea
red beans
coffee beans
orchid bean
lentils
